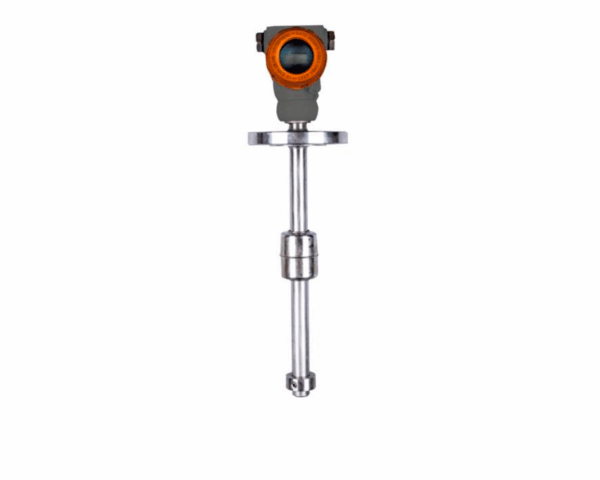

UQD type float liquid level transmitter

I. Product Overview The UQD type float liquid level transmitter consists of a magnetic float, a measuring tube, a measuring element, a circuit unit, a junction box housing and mounting parts. The float changes synchronously with the liquid level. Through magnetic coupling, the resistance in the sensor changes linearly. The converter then converts the resistance change into a current amplified to a 4-20mA two-wire standard signal output, realizing remote detection and control of the measured liquid.
UQD type float liquid level transmitter is suitable for water treatment in industries such as oil refining, chemical industry, papermaking, food and pharmaceuticals, as well as the page position measurement of media in various high and low level containers in industrial production, especially for underground tank level measurement.
2. Main technical parameters
Measurement range: 0-6000mm
Output signal: 4-20mA two-wire standard signal, optional HART
Power supply voltage: 24VDC
Accuracy: ±10mm, ±5mm, optional
Working pressure: ≤2.5mm
Liquid contact material: 304, 316L, PTFE, etc.
Outlet connector: M20*1.5, 1/2NPT
