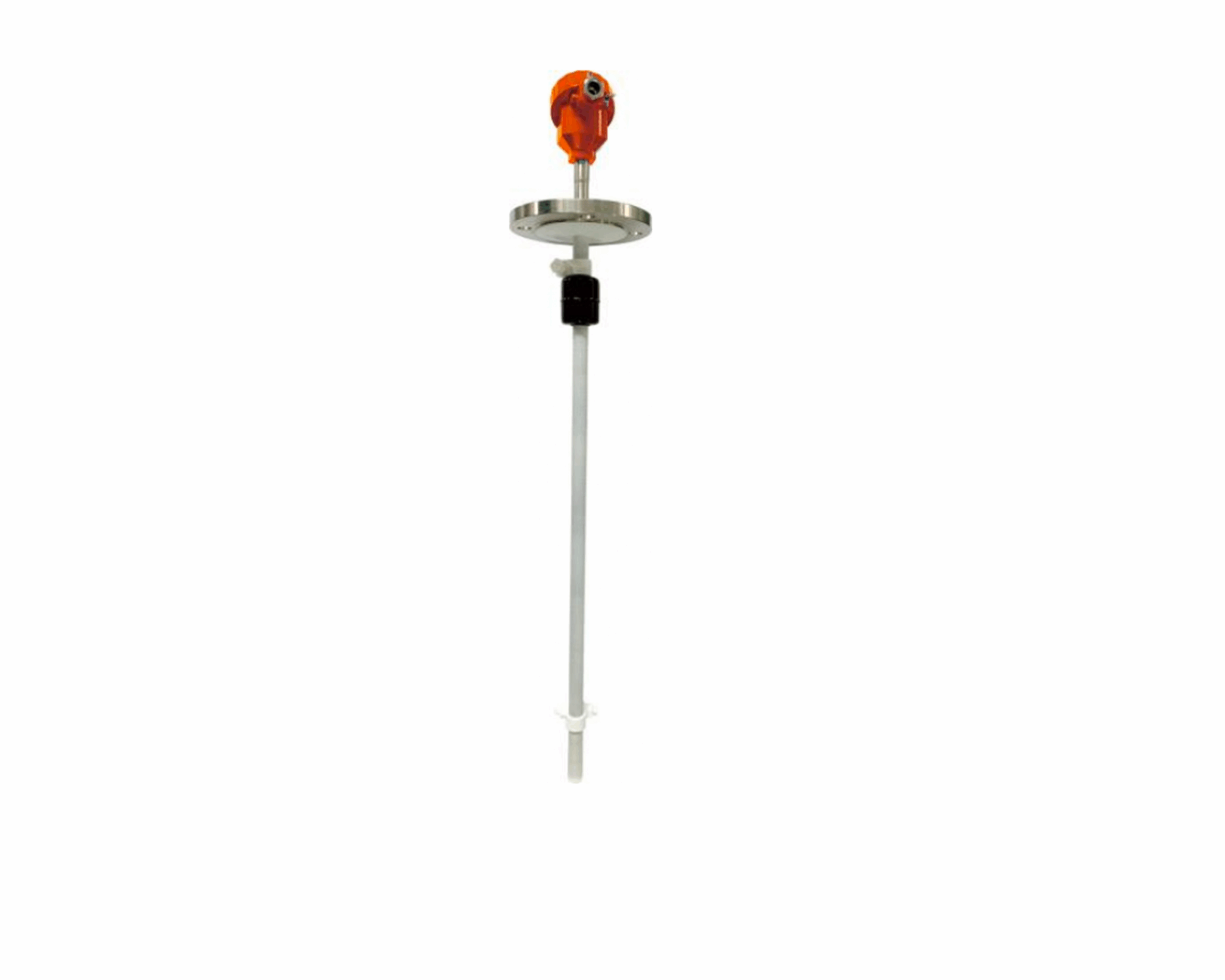

UOK-2 series float liquid level controller

I. Product Overview
UQK-2 series multi-float liquid level controller uses the buoyancy of liquid to set one or more reed switches in a closed metal or plastic tube according to the position and quantity specified by the user, and then passes the tube through the same number of hollow floats with annular magnets inside, and uses a fixed ring to control the float at the position corresponding to the reed switch, so that the float can float up and down within a certain range. The magnet in the float is used to attract the reed switch to generate the action of opening and closing to control or indicate the position of the liquid level.
It can be used in shipbuilding industry, generator equipment, petrochemical industry, food industry, wastewater or water purification equipment, electronics industry, printing and dyeing industry, chemical industry, etc.
2. Main technical parameters
a) Working pressure: ≤2.5MPa;
b) Working temperature: -15~120℃
c) Ambient temperature: -40~60℃
d) Contact material: stainless steel, polytetrafluoroethylene e) Shock capacity: AC 220V 0.3A;
f) Protection level: IP65:
9) Insertion depth range: 200~5000mm;
h) Output signal: dry contact
i) Protection level: IP65;
j) Electrical interface: M20x1.5 internal thread;
k) Installation form: top installation.
