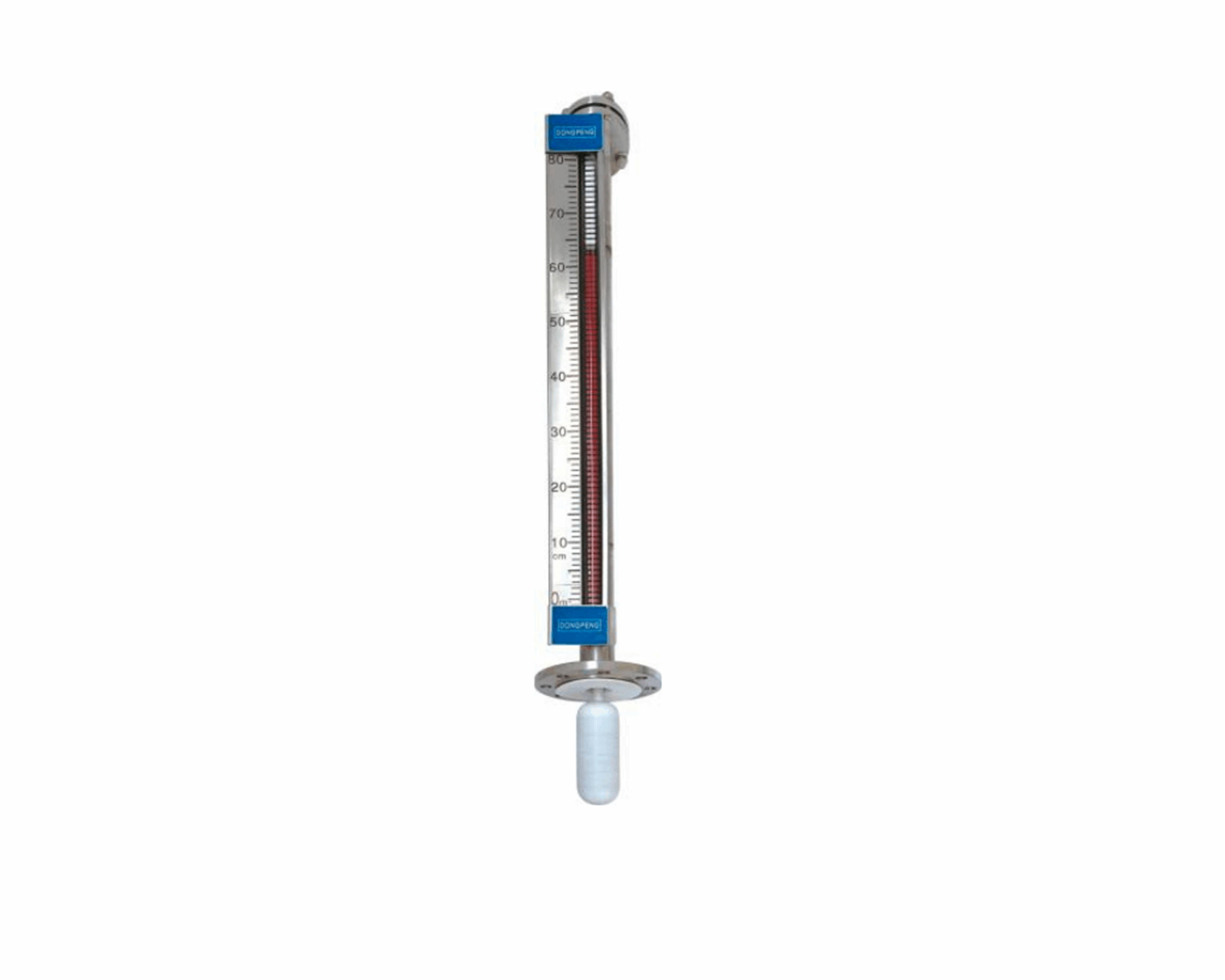

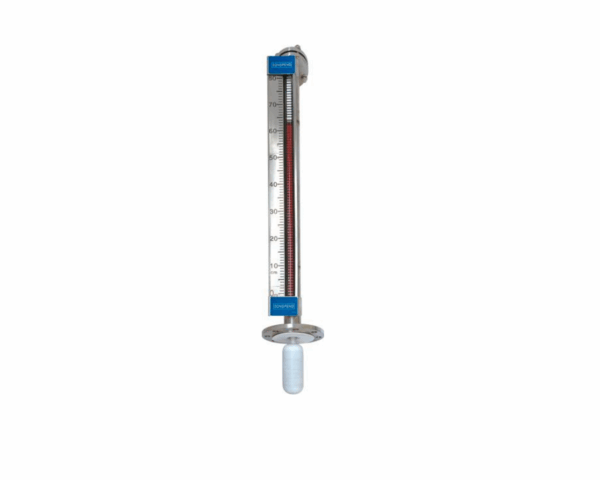

Top mounted magnetic flap liquid level meter

I. Product Overview
Top mounted magnetic float liquid level meter is suitable for measuring the liquid level or interface level of liquid media in various underground tanks, boxes and containers. The liquid level change in the container is transmitted to the magnetic steel by the float through the connecting rod, and then the magnetic steel drives the inner column of the indicator to flip. Due to structural reasons, there are certain blind areas during measurement, and the blind area values ​​of media with different densities are also inconsistent. The liquid level meter has clear indications and is an ideal instrument for on-site detection. It is suitable for a variety of water, liquefied gas, propylene, oil products, dilute acids, alkali salts, various organic and inorganic chemical media, as well as heavy oil, tar and other media with high viscosity. 2. Main technical indicators
Measurement range: 200~5000mm
Measurement accuracy: ±10mm
Cavity material: SS304, SS316, SS316L, 304+PTFE, etc.
Float shape: spherical or cylindrical
Indicator type: red and white flip column panel, vacuum panel, magnetic sensitive panel Working pressure: 1.0, 1.6 MPa
Temperature range: -40℃~200℃
Medium specific gravity: 20.45g/cm
Medium density difference: >0.3g/cm*(measurement interface)
Connection flange size: DN80, DN100, DN125, DN150 (HG/T20592-2009) If other flanges and standards are used, please indicate when ordering
Transmitter output signal: two-wire 4~20mADC/HART, 250Q load
Explosion-proof level: Exia II CT4-T6, Exd II CT4-T6
Protection level :IP67
Optional:SUK series magnetic switch, UQD level transmitter, SCZ magnetostrictive level transmitter
