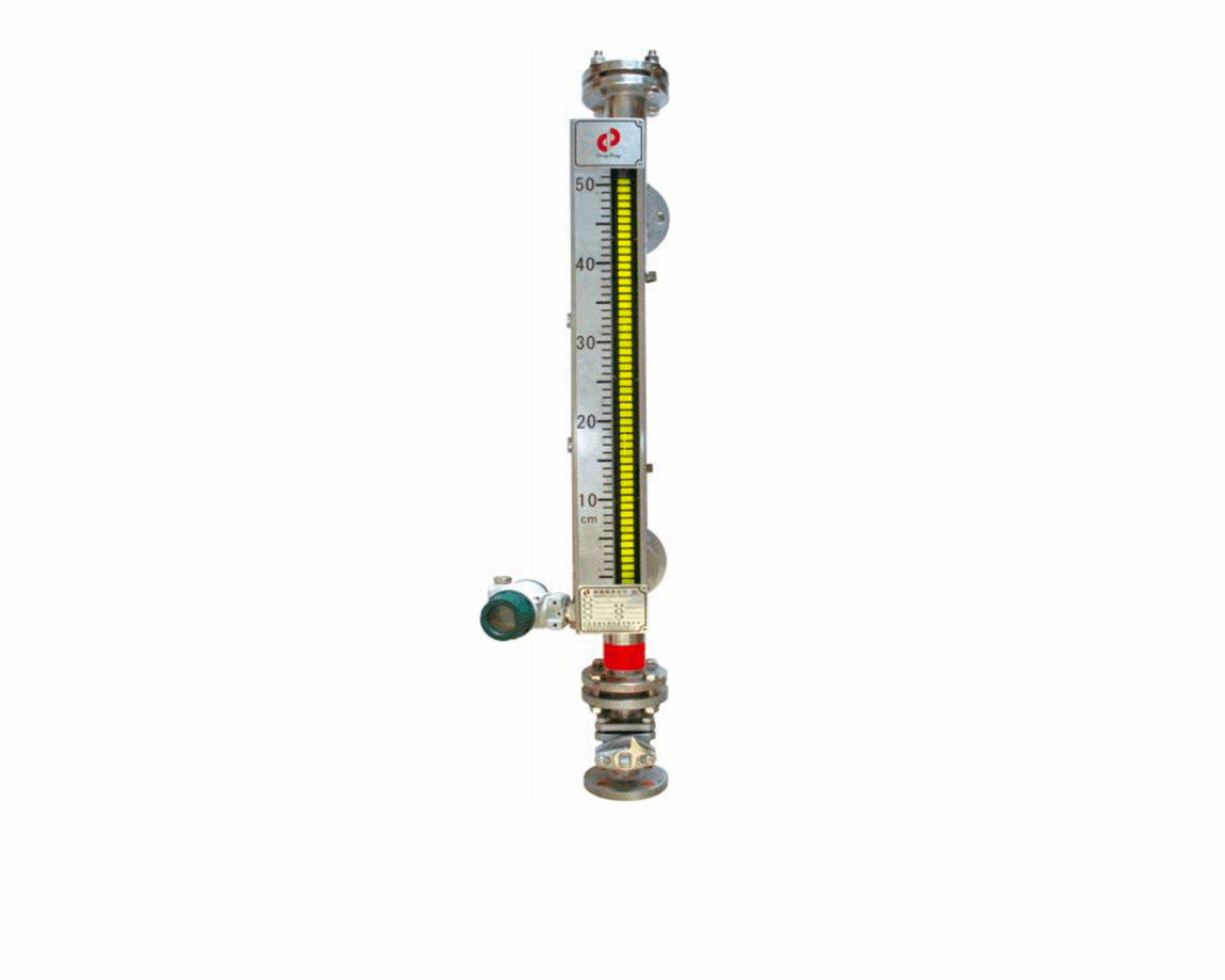

Special anti-corrosion magnetic flap for liquid chlorine

I. Product Overview
Special anti-corrosion magnetic flap for liquid chlorine is a fluorine-lined liquid level meter designed for the working condition that liquid chlorine is prone to negative pressure during maintenance, using a special tight lining process and anti-corrosion structure. The lining thickness is 2.5~3.0mm and has excellent anti-corrosion performance. The float material is stainless steel with PTFE wrapped outside, which has good structural strength and corrosion resistance. It has the advantages of eye-catching indication, easy installation, good sealing, explosion-proof, corrosion-resistant, safe and reliable operation, and low failure rate. It is widely used in chemical production, especially for monitoring the liquid level of liquid chlorine tanks.
2. Technical indicators
Measuring range: 200-6000mm
Measuring accuracy: ±10mm
Cavity material: 304+PTFE, 316L+PTFE
Float material: stainless steel lined with polytetrafluoroethylene
Working pressure: ≤1.0~4.0MPa
Working temperature: ≤120°
Indicator type: red and white flip column panel, vacuum panel, magnetic sensitive panel
Connection flange size: DN20, DN25, DN50 (HG/T20592-2009) If other flanges and standard clear users are used, please indicate when ordering
Transmitter output signal: two-wire 4~20mADC/HART, 250Q load
Explosion-proof grade: ExiaIICT4-T6, Exd IICT4-T6
Protection grade: IP67
Optional: SUK series magnetic switch, UQD liquid level transmitter, SCZ magnetostrictive liquid level transmitter
