Mass flow meter is an instrument that directly measures the mass flow of fluids. It has the characteristics of high precision and no compensation required, and plays a key role in industrial process control and trade measurement. The following are its main functions and application features:
1. Core functions
Direct mass flow measurement
Different from volume flow meter, directly outputs mass units such as kg/h or t/h
No temperature or pressure compensation required (especially suitable for gas and steam)

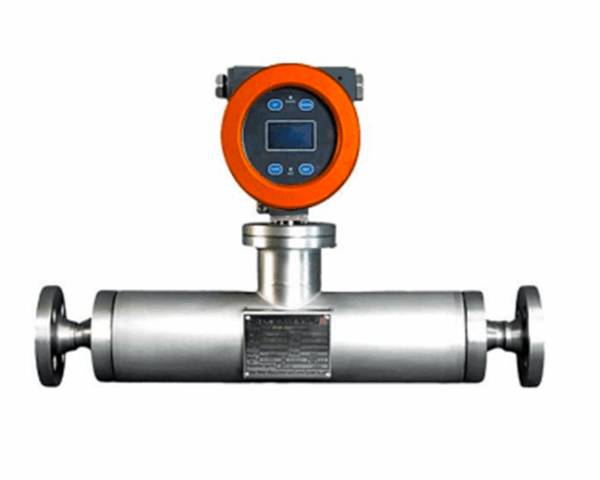

DTGMFM Type mass flow meter
DTGMFM Type mass flow meter
Medium: liquid (high viscosity fluid, slurry, suspension, etc.), gas◆Accuracy: ±0.3% (gas), ±0.2% (liquid) (liquid accuracy ±0.15% and ±0.1% can be customized)◆Working pressure: 0~4.0MPa
Density measurement range and accuracy: range 0.3~3.000g/cm3, accuracy ±0.002g/cm3Temperature measurement range and accuracy: range -20℃~200℃ (straight pipe section),
-50℃~200℃ (conventional), accuracy ±1 ℃
Medium temperature: -20℃~200℃ (straight pipe section), -50℃~200℃ (conventional),
-200℃~200℃ (conventional ultra-low temperature products)
Ambient temperature: -20℃~60℃
Range ratio: 1:10 or 1:20
Connection method: flange, clamp, thread
Power supply: 24VDC, 220VAC
Output: pulse, 4-20mA, RS485, Hart
Advantages: Straight pipe section products have low pressure loss, easy to drain and clean, high measurement accuracy, low wear and good stability.
