Anti-corrosion radar is a radar measurement device designed for corrosive environments. It is mainly used for level, flow or thickness monitoring in harsh working conditions such as chemical, marine, and sewage treatment. Its core function is to maintain long-term stable measurement under strong corrosive conditions while avoiding medium erosion of the sensor.

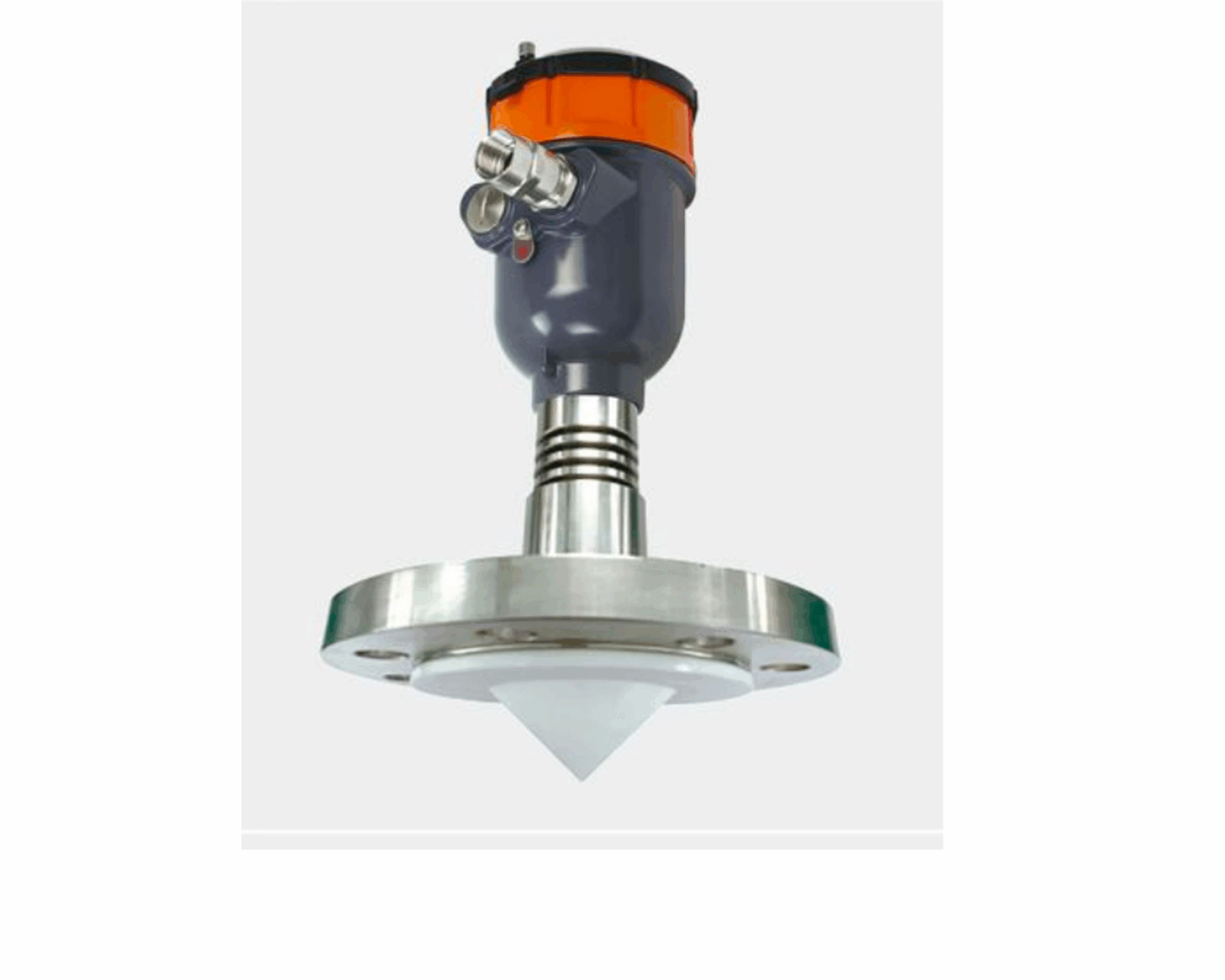

Anti-corrosion radar: HL40406F
Anti-corrosion radar: HL40406F
I. Basic parameters
Typical applications: various corrosive liquids
Measuring range: 10 meters
Measuring accuracy: ±5mm
Frequency range: 26GHz
Medium temperature: -40~130℃C
Process pressure: -0.1~0.3MPa
Process connection: thread, flange (optional) Protection level: IP67
Explosion-proof level: ExiaIICT6 (optional)
Signal output: 4…20mA/HART (two-wire/four-wire); RS485/Modbus…
