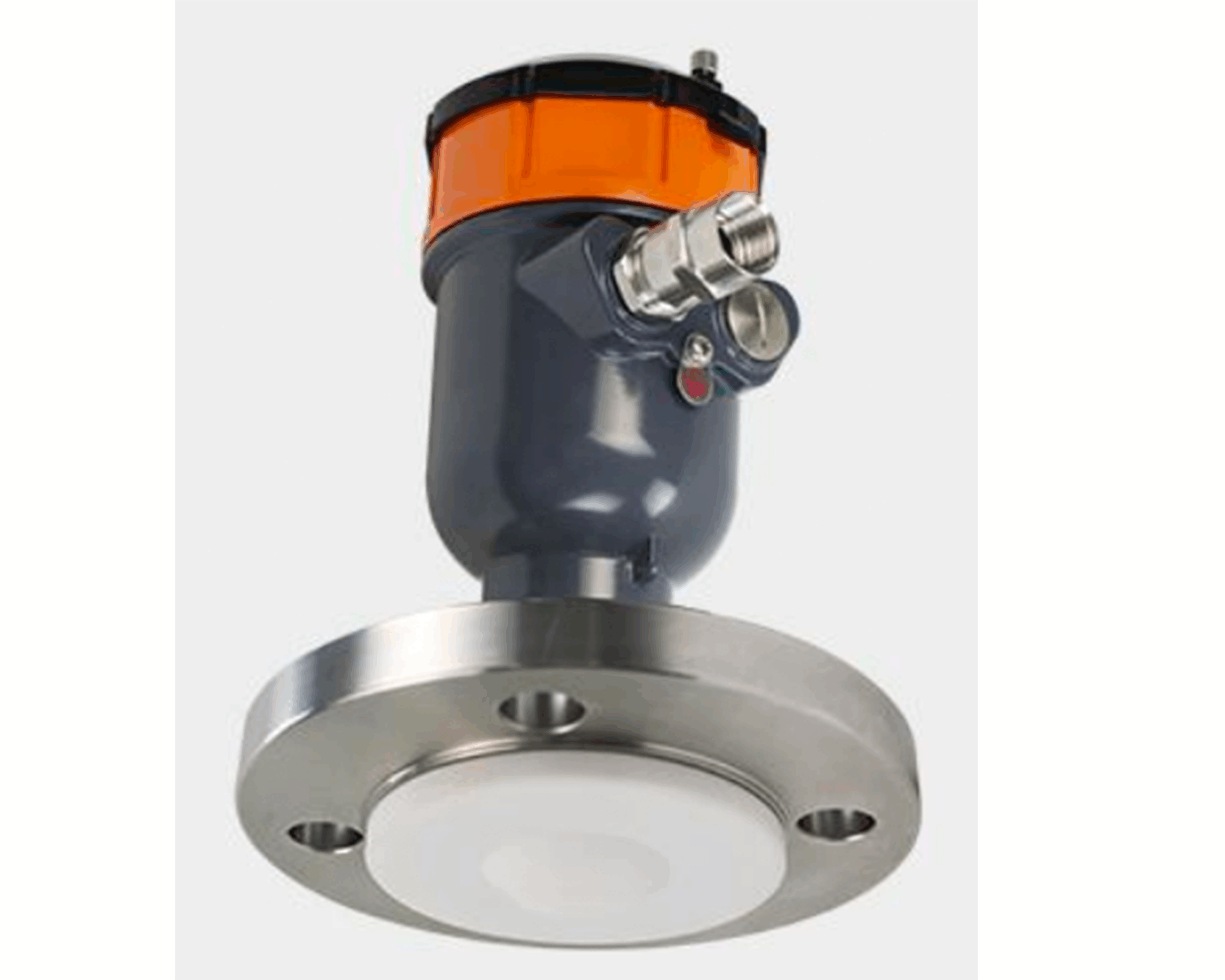

80G lens radar: HL404TJ

1. Lens radar features
80GHz radar level meter series products refer to frequency modulated continuous wave (FMCW) radar products working at 76-81GHz, supporting four-wire and two-wire applications. The product has multiple models and the range can reach 120m. , 2. Basic parameters
Typical applications: various corrosive liquids, solid powders
Measuring range: 50 meters
Frequency range: 76~81GHz
Measurement accuracy: ±1mm
Medium temperature: -40~200℃C
Process pressure: -0.1~2MPa
Process connection: thread, flange (optional)
Protection level: IP67
Explosion-proof level: ExiaICT6 (optional)
Signal output: 4…20mA/HART (two-wire/four-wire); RS485/Modbus…
