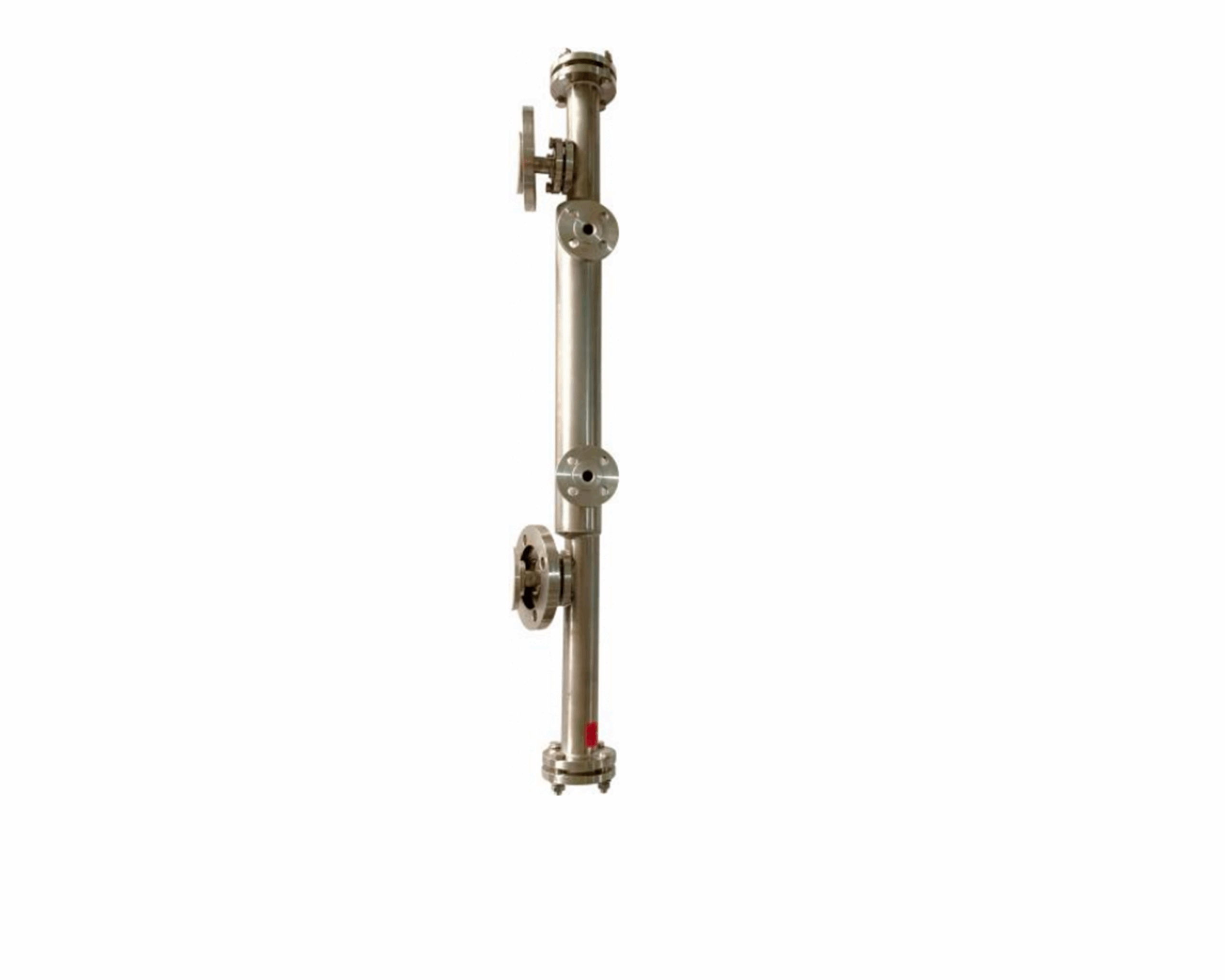

Jacketed anti-corrosion magnetic flap liquid level meter

I. Product Overview
Jacketed anti-corrosion magnetic flap liquid level meter is a novel heat-insulating on-site anti-corrosion liquid level detection instrument. Due to the particularity of the fluorine-lined structure, the heating layer can only be placed between the two flanges connected on the side. The temperature of the measured medium in the fluorine-lined measuring cylinder is maintained by heating with steam or heat-conducting oil not exceeding 120°C, so that the liquid level measurement always works at a certain temperature, providing a reliable guarantee for the liquid level measurement of corrosive liquid media that are easy to solidify and have poor fluidity at low temperatures. It is suitable for liquid level measurement in petrochemical and other systems that require antifreeze, insulation and heating. The connection methods of the jacket include flange connection, pipe connection or special processing according to user needs.
II. Technical indicators
Measuring range: 300-6000mm
Measuring accuracy: ±10mm
Cavity material: 304+PTFE, 316L+PTFE
Float material: stainless steel lined with polytetrafluoroethylene
Working pressure: ≤1.0~4.0MPa
Working temperature: ≤120°
Indicator type: red and white flip column panel, vacuum panel, magnetic sensitive panel
Connection flange size: DN20, DN25, DN50 (HG/T20592-2009) If other flanges and standard clear users are used, please indicate when ordering
Transmitter output signal: two-wire 4~20mADC/HART, 250Ω load
Explosion-proof level: Exia IICT4-T6, Exd IICT4-T6
Protection level: IP67
Optional options: SUK series magnetic switch, UQD liquid level transmitter, SCZ magnetostrictive liquid level gauge
