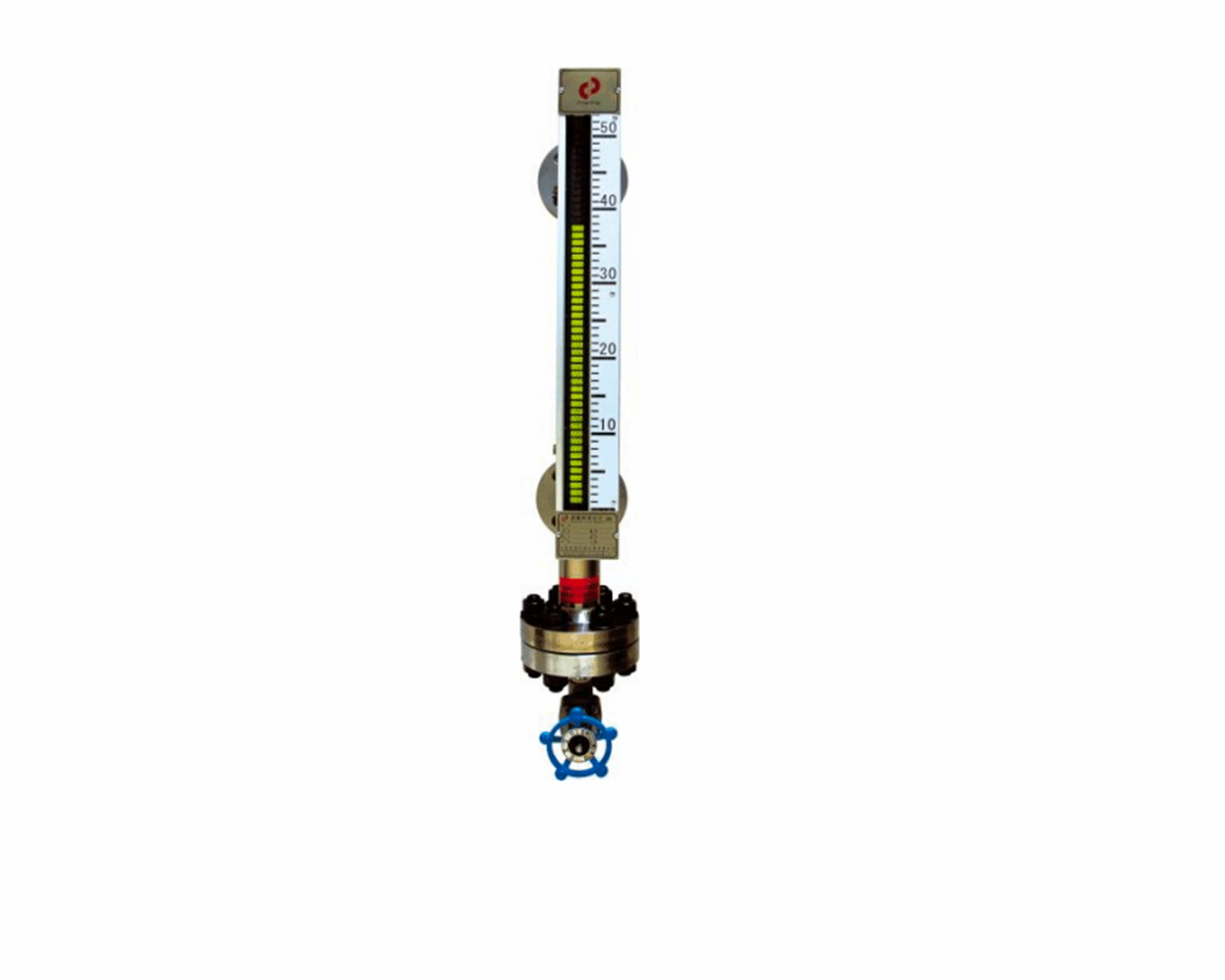

High temperature and high pressure magnetic flap liquid level meter

I. Product Overview
High temperature and high pressure magnetic flap liquid level meter is suitable for the measurement and control of liquid level and interface position of high temperature and high pressure liquid containers. The maximum working pressure can reach 32MPa, and the maximum working temperature is 450℃. The magnetic flap column adopts alumina ceramic sintering process, and the magnetic steel in the float adopts special high temperature resistant aluminum cobalt nickel permanent magnetic steel.
The indicator clearly indicates the height of the liquid level, the display is intuitive and eye-catching, the indicator is completely isolated from the storage tank, and it is safe to use, reasonable design, simple structure, convenient and reliable installation, stable performance, long service life, low maintenance cost, easy installation and maintenance.
A matching high temperature resistant magnetic switch can be selected to realize the upper and lower limit alarm and control of the liquid level. The bundled high temperature resistant transmitter can output 4-20mA remote transmission signal to realize long-distance detection, indication and control.
, technical indicators
Measuring range: 200~4000mm
Measuring accuracy: ±10mm
Cavity material: SS304, SS304L, SS321, SS316, SS316LWorking pressure: 4.0, 6.4, 10, 16.0, 25, 32MPa
Temperature range: -100℃~450℃C
Medium specific gravity: 20.5g/cm
Medium density difference: 20.15g/cm³ (measurement interface)
Medium viscosity: ≤0.02Pa.S
Explosion-proof level: Exia II CT4-T6, Exd II CT4-T6
Protection level: IP67
Transmitter output signal: two-wire 4~20mA DC/HART, 2502 load indicator Type: red and white flip column panel, vacuum panel, magnetic sensitive panel Connection flange size: DN20, DN25, DN50 (HG/T20592-2009) can be specially processed according to customer requirements Optional: magnetic switch, liquid level transmitter, magnetostrictive transmitter
