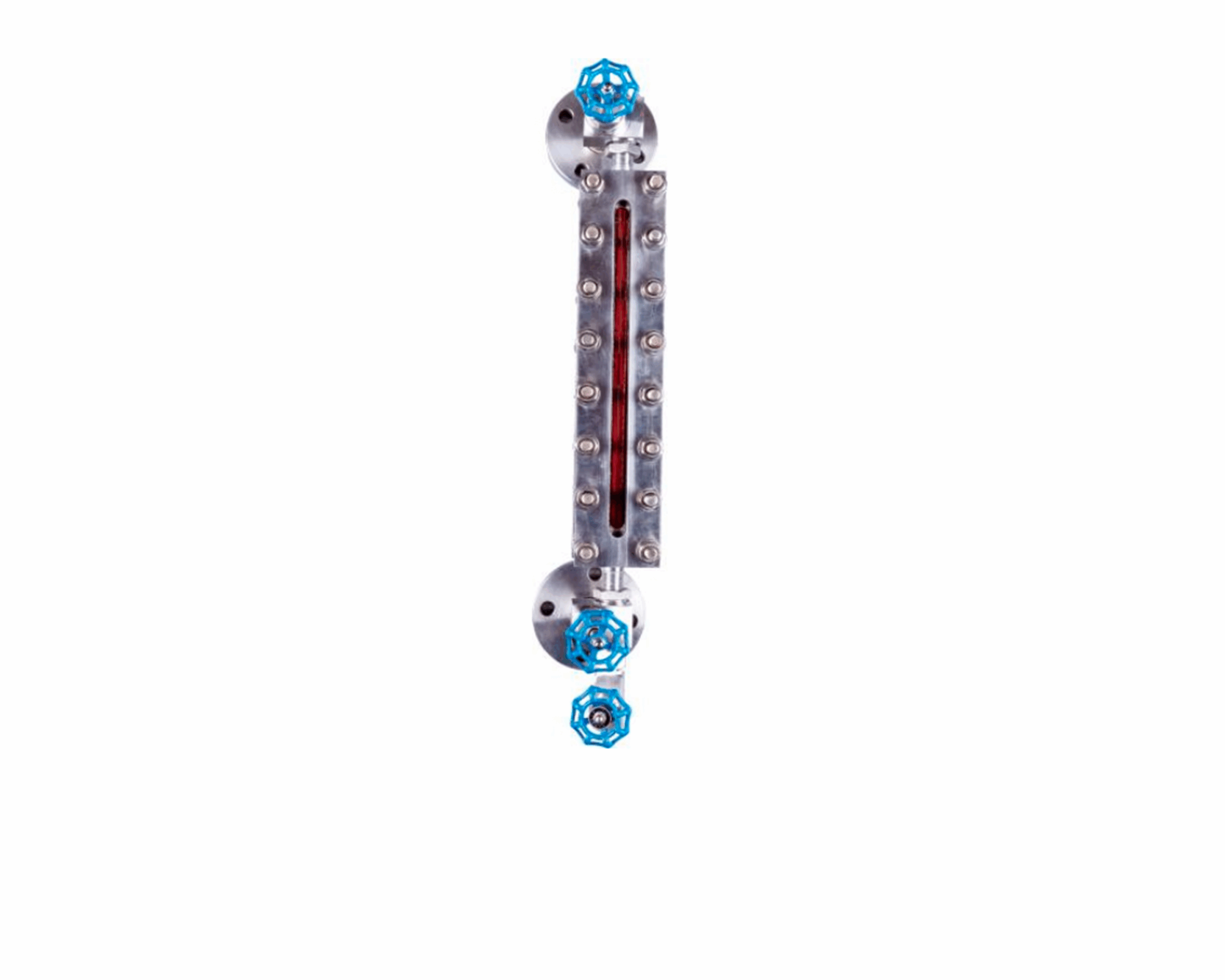

HG5 glass plate liquid level meter

I. Product Overview
HG5 glass plate liquid level meter is suitable for directly indicating the liquid level in various tanks, towers, tanks, boxes and other containers. There are safety steel balls in the upper and lower valves of the instrument. When the glass is accidentally broken, the steel ball can automatically close the liquid flow channel under the action of the pressure in the container to prevent the liquid from continuing to flow out.
According to the principle of communicating vessels, the liquid level in the container is led to the external glass plate liquid level meter, and the actual height of the liquid level is read from the transparent glass surface. The instrument valve stem sealing packing adopts flexible graphite compression ring, so the sealing performance is better.
Main technical parameters
Installation center distance (L: mm): 300, 500, 800, 1100, 1400, 1700, can be customized
Nominal pressure: (MPa): 1.0, 1.6, 2.5, 4.0, 6.4 Working temperature: -20~250℃
Steel ball automatic closing pressure: 20.2MPa
Heating steam pressure: 20.6MPa
Liquid contact material: carbon steel, stainless steel
