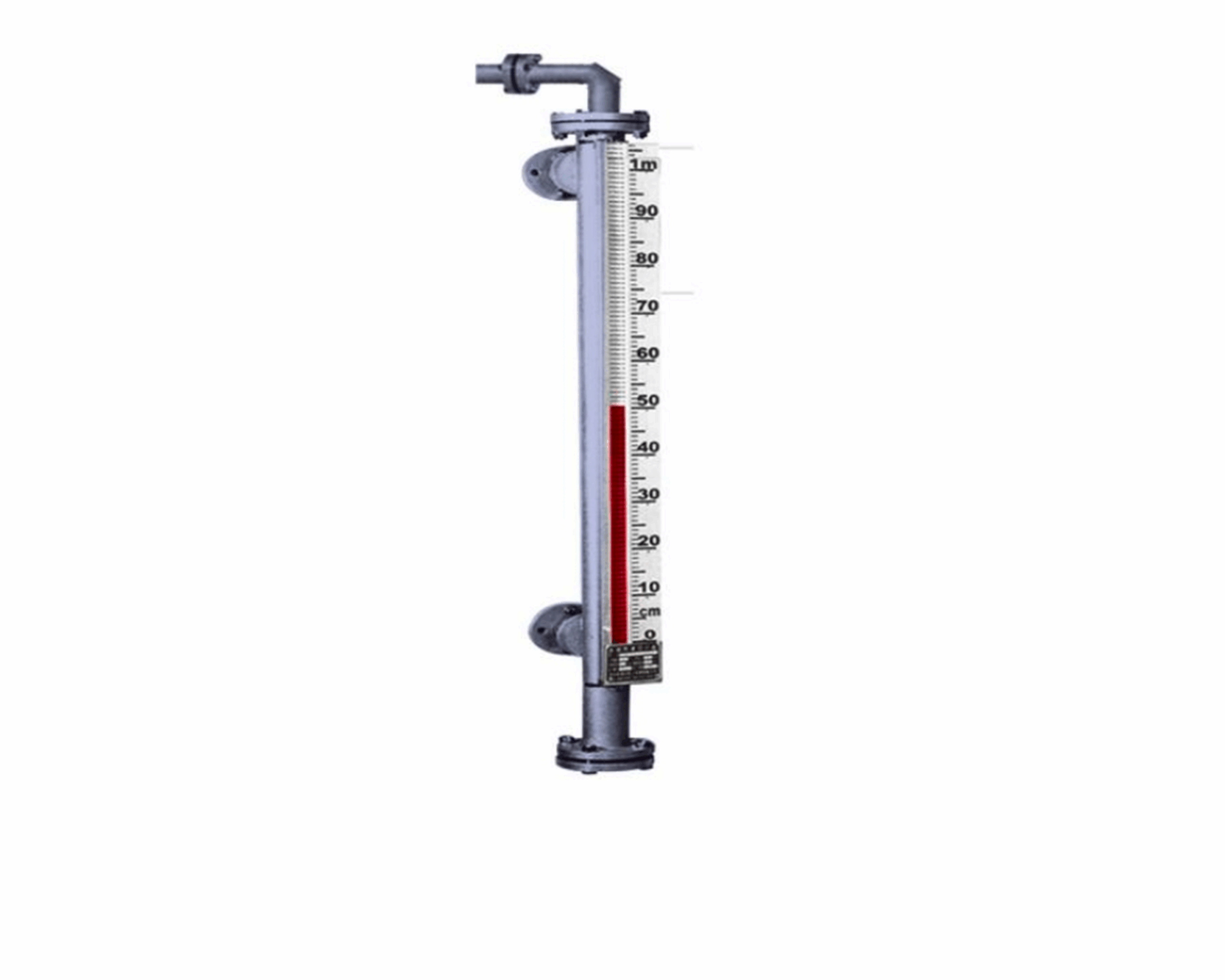

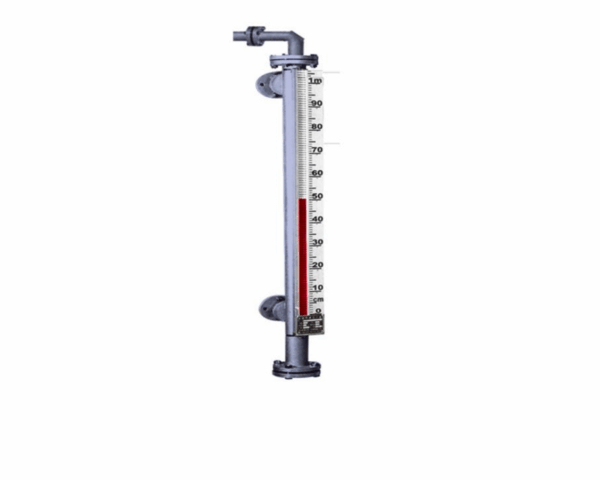

Float type magnetic flap liquid level meter

Product Overview
This product is suitable for liquid level measurement of large storage tanks in petrochemical systems, especially for liquid level measurement of high viscosity media such as heavy oil, tar, crude oil, resin, etc. The whole process measurement has no blind spots, the measurement range is large, the liquid level meter has clear indication, and it is easy to observe. It can also be equipped with remote transmitters and magnetic switches.
Technical indicators
Measuring range: 2000-20000mm
Measuring accuracy: ±10mm
Main chamber material: SS304, SS316, SS316L, fluorine-lined
Indicator type: red and white flip column panel, aluminum alloy vacuum panel, stainless steel vacuum panel
Working pressure: 1.0 MPa
Temperature range: -20~200℃
Medium specific gravity: >0.45g/cm
Transmitter output signal: two-wire 4~20mADC/HART, 250Ω load explosion-proof level: Exia II CT4-T6.Exd II CT4-T6
Protection level: IP67
Connection flange size: DN80, DN100, DN125, DN150 (HG/T20592-2009)
