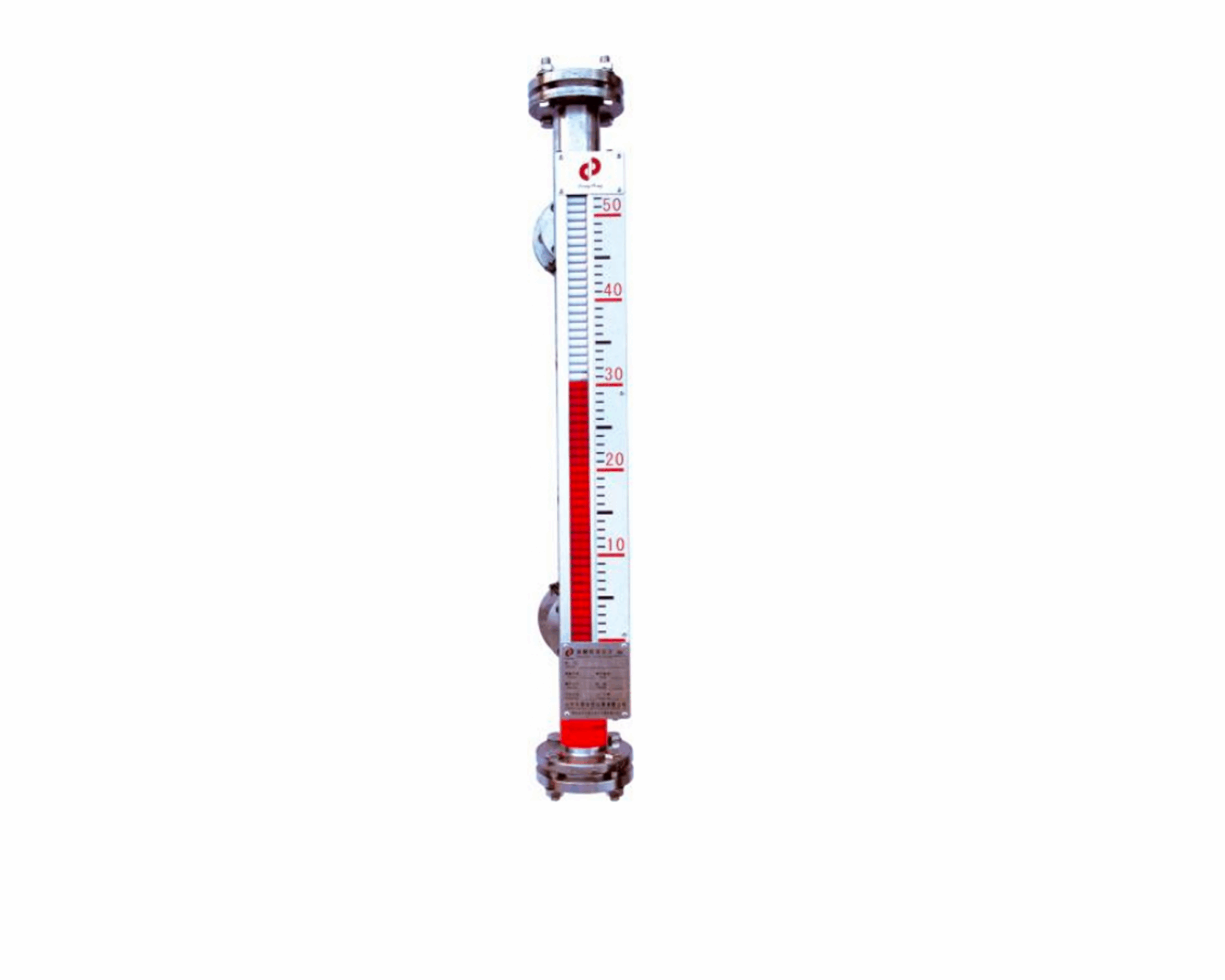

Anti-corrosion magnetic flap liquid level meter

I. Product Overview
UHZ series PTFE-lined magnetic float liquid level meter adopts special structure and process, and all liquid contact parts are isolated by PTFE. The lining thickness is 2.5-3.0mm, and the anti-corrosion performance is excellent
PTFE-lined anti-corrosion liquid level meter is divided into two types: no blind area and blind area display. The non-blind area display liquid level meter adopts advanced stainless steel lining polytetrafluoroethylene stretching and flanging new process, so that the liquid level meter has no blind area measurement, reliable structure, and excellent anti-corrosion performance.
The float material is stainless steel with fluorine or full polytetrafluoroethylene on the outer layer, which has good structural strength and corrosion resistance. The liquid level meter is suitable for level measurement of corrosive media, especially for acidic and alkaline liquids such as hydrochloric acid and sulfuric acid and many organic solvents.
2. Technical indicators
Measuring range: 200-6000mm (special customization is available)
Measuring accuracy: ±10mm
Material: 304+PTFE, 316L+PTFE, etc. Working pressure: ≤2.5MPa
Working temperature: ≤120℃C
Specific gravity of medium: 20.7g/cm3
Protection level: IP67
Drain valve: flange ball valve, carbon steel anti-corrosion, stainless steel anti-corrosion Indicator type: magnetic flap vacuum panel, magnetic flap column panel, PP panel
