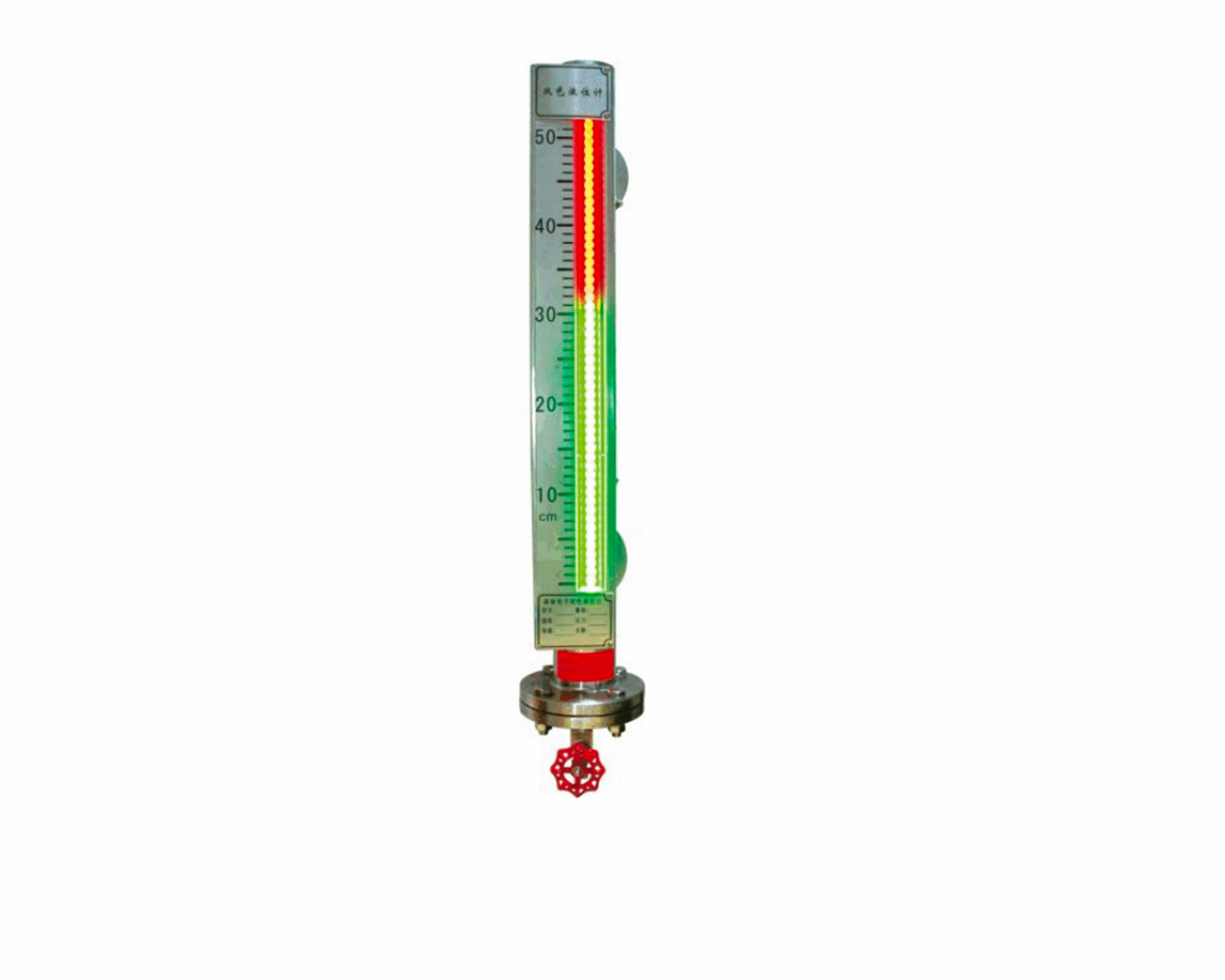

Magnetic electronic two-color liquid level meter

Magnetic electronic two-color liquid level meter

Product overview
The display part of the SCM series magnetic two-color liquid level meter uses high-brightness LED two-color light-emitting tubes to form a columnar display screen. The red and green changes of the LED light column are used to display the height of the liquid level meter. The display brightness is high, the visual distance is long, the scale is clear, and the display angle range is wide. The product is more serialized and intelligent, and can withstand high temperature and high pressure. It is suitable for medium level measurement of various towers, tanks, spherical containers and boilers.
, Product Features
*Semiconductor LED light-emitting devices are used, with high brightness, red and green dual-color display, clear red gas and green liquid* luminous display, large observation angle, and long visible distance
*The body is made of stainless steel, and the liquid level meter display device does not contact the medium in the container, and there is no leakage
*The display range is large and the application range is wide, suitable for low temperature, medium temperature, high temperature, and high pressure occasions
III. Main technical parameters
Installation method: side installation, top installation Measuring range: 300~6000mm
Medium density: 0.45~2.0g/cm
Working temperature: -0.1~450℃
Power supply voltage: DC24V, AC220V
Main pipe material: SS304, SS316, titanium, PTFE, etc.

Magnetic sensitive electronic two-color liquid level meter is an industrial instrument used to measure the height of liquid, which mainly realizes real-time monitoring of liquid level through magnetic sensitive elements and two-color display technology. The following are its main functions and features:
1. Liquid level measurement and display
The magnetic float drives the magnetic sensitive element to move with the rise and fall of the liquid level, converts the liquid level height into an electrical signal, and then displays the liquid level intuitively through the red and green two-color columnar light band (red represents the liquid phase, green represents the gas phase), which is convenient for quick identification.

2. High precision and reliability
Adopting the principle of magnetic coupling, non-contact measurement, avoiding mechanical wear, suitable for high temperature, high pressure or corrosive media working conditions.

3. Alarm and remote monitoring
Configurable switch output, triggering an alarm when the liquid level exceeds the set threshold, some models support 4-20mA signal output, which is convenient for connecting to the DCS/PLC system for remote monitoring.

4. Applicable scenarios
Widely used in industries such as petroleum, chemical, and electric power, such as liquid level monitoring of storage tanks, boiler drums and other equipment.
